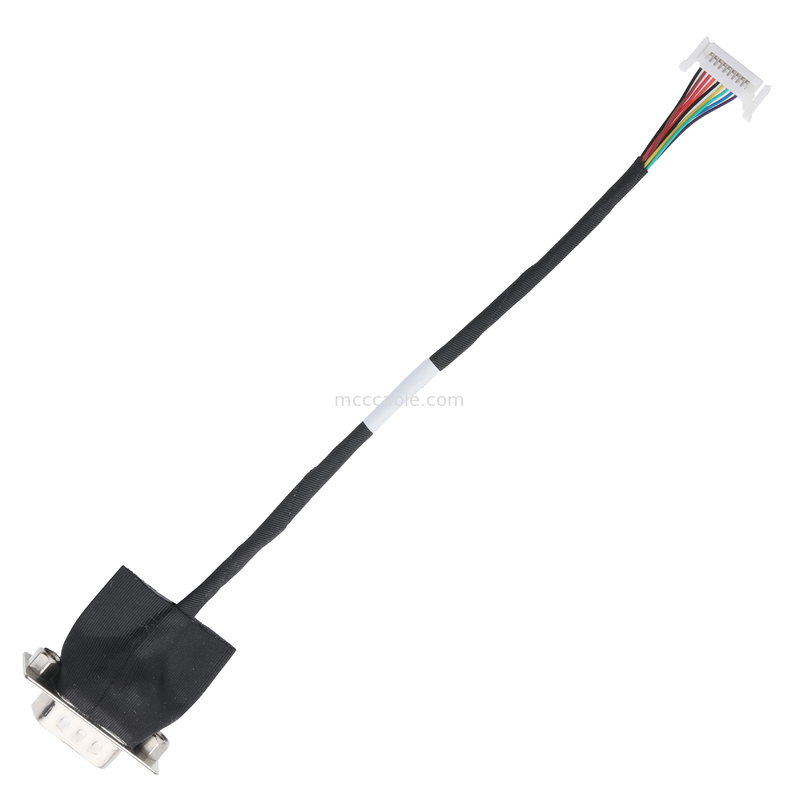

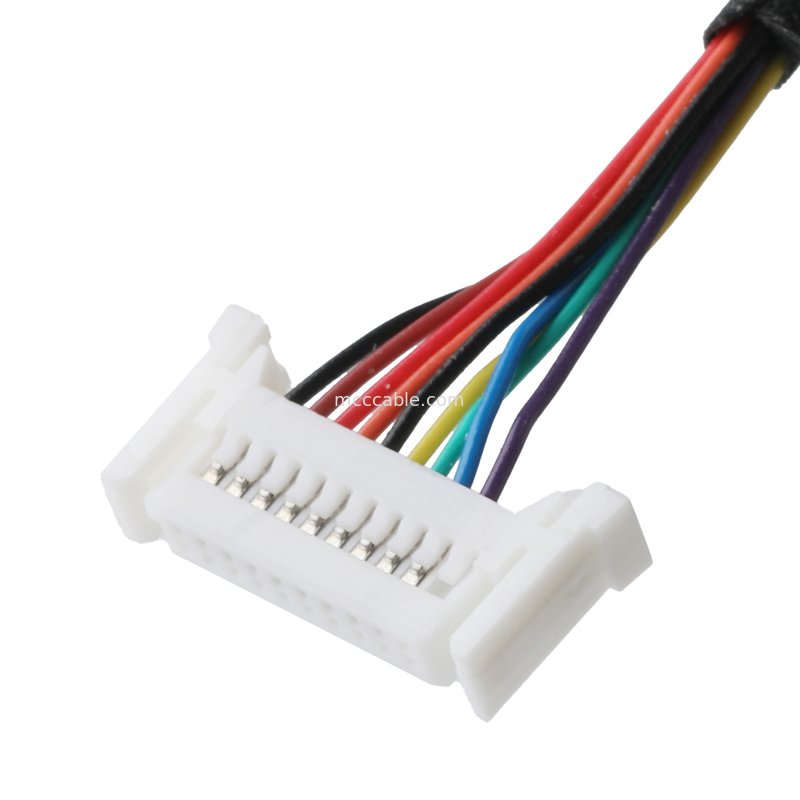

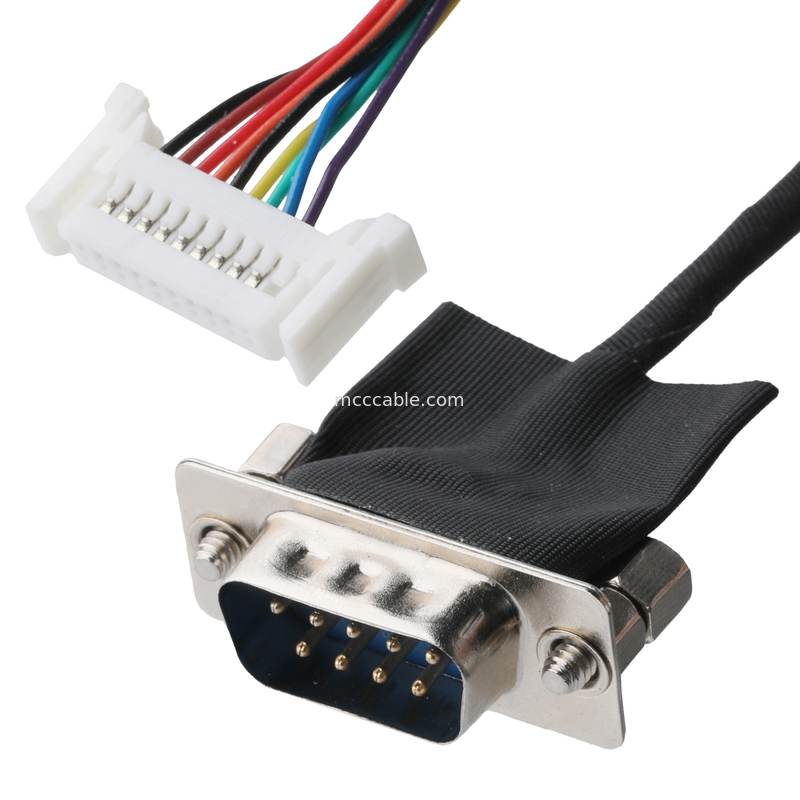

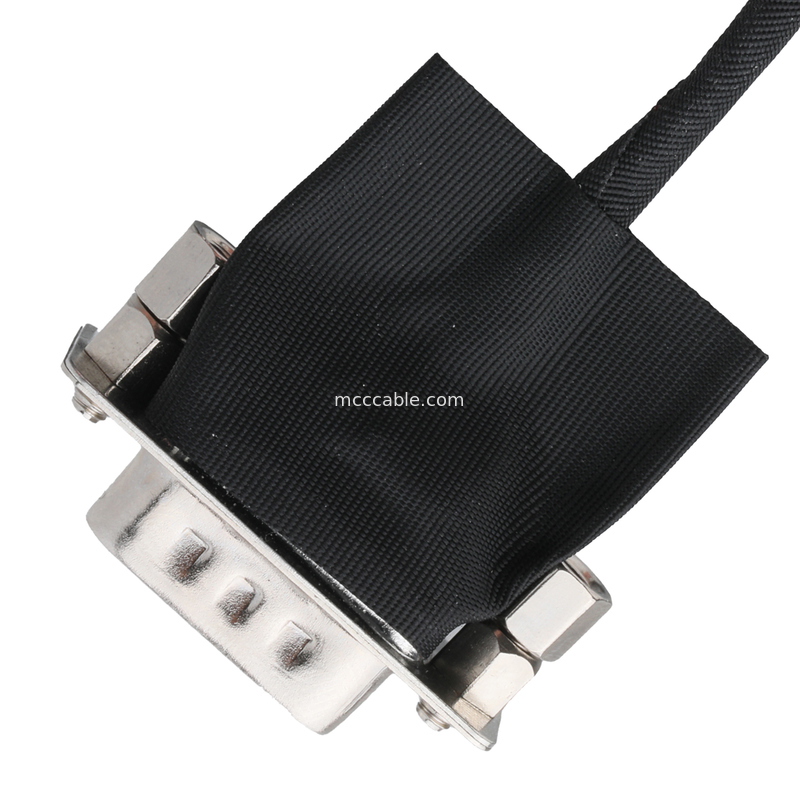

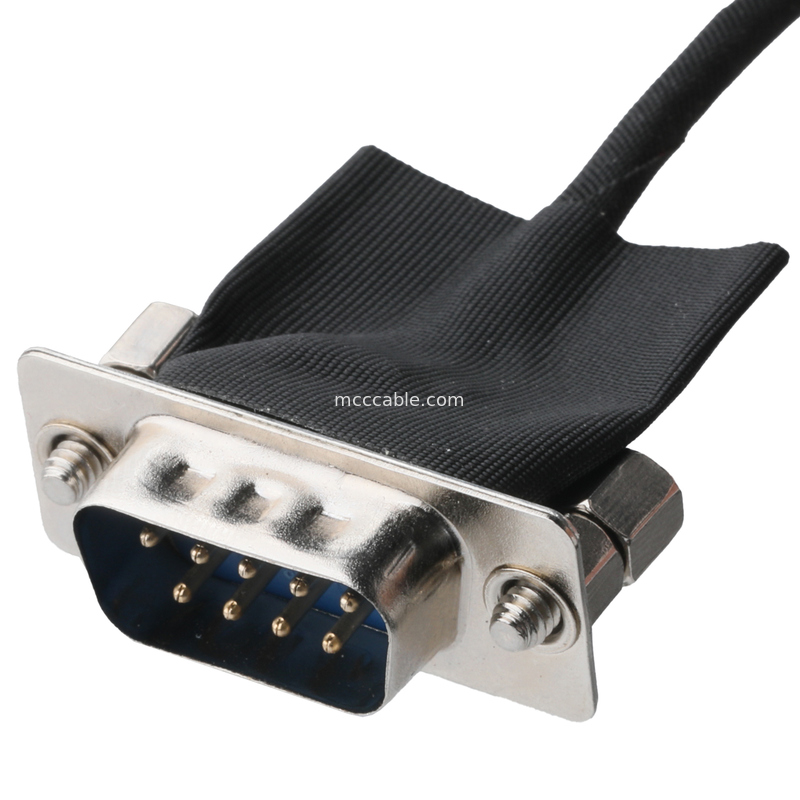

DB9 Male to 20-Pin 1.0mm Pitch Wire Harness - UL1571 28AWG Custom Assembly

DB9 Male to 20-Pin 1.0mm Pitch Wire Harness - UL1571 28AWG Custom Assembly

DB9 male wire harness UL1571

20-pin 1.0mm pitch wire harness

custom wire harness 28AWG

مكان المنشأ:

الصين

اسم العلامة التجارية:

Customization

إصدار الشهادات:

UL ,ISO13485 , ISO9001.2005 , ISO14001

رقم الموديل:

DB9 ذكر إلى 20 دبوس 1.0 مم سلك تسخير

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
الموصل أ:
DB-9Pin ذكر
الموصل ب:
رأس SMT ذو 20 سنًا 1.0 مم
طول:
تخصيص
خدمة:
تصميم
إصدار الشهادات:
ISO9001
مستوى التفتيش:
اختبار 100 ٪ مفتوح / قصير / متقطع
إبراز:

DB9 male wire harness UL1571

,

20-pin 1.0mm pitch wire harness

,

custom wire harness 28AWG

شروط الدفع والشحن
الحد الأدنى لكمية
1
الأسعار
Contact us
تفاصيل التغليف
PE داخلي ، الكرتون الخارجي
وقت التسليم
من 2 إلى 10 أيام للعينات ، 3-4 أسابيع للضغط الضخم
شروط الدفع
/ تي تي، ويسترن يونيون
القدرة على العرض
15000pcs/أسبوع
وصف المنتج
DB9 Male to 20-Pin 1.0mm Pitch Wire Harness - UL1571 28AWG Custom Assembly DB9 Male to 20-Pin 1.0mm Pitch Wire Harness: Parameter Specification Connector A DB9 Male (Blue Rear Rivet Nut, Hexagonal Screw) Connector B 20-pin 1.0mm Pitch SMT Header (White Housing) Wire Specification UL1571 28AWG (0.6mm OD) Length Customizable Insulation Resistance ≥10MΩ @100V DC Contact Resistance ≤20mΩ Max Hi-Pot Test AC 100V/0.1s Pass Compliance RoHS, UL1571 Certified Testing 100% Continuity
